Arrange multiple Windows of the same Workbook!

How to view different worksheets of the same workbook side by side?

It’s quite normal to have two workbooks opened; and more than common to view the two workbooks side by side:


This could be done fairly easy:

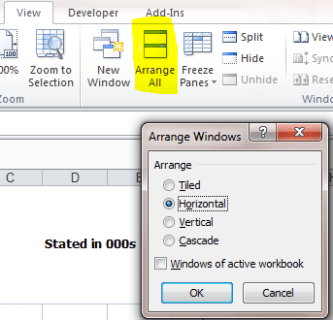

1) On the RIbbon, Go to View –> Arrange All –> Select how you want to arrange –> OK

Image(Pls try the four different ways to see the differences)

How about to view same/different worksheet(s) of the SAME workbook together?

It requires just one more step in advance.

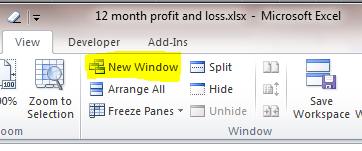

1) Create a new window for the workbook: Go to View –> New Window


2) Note the name on the top of the window.  Now it is “12 month profit and loss.xlsx:2 – Microsoft Excel”


3) Also look at the bottom, you should see two windows of the same workbook.


4) Repeat the step in the 1st part: Go to View –> Arrange All –> Select the way you want –> Check “Windows of Active Workbook” –> OK

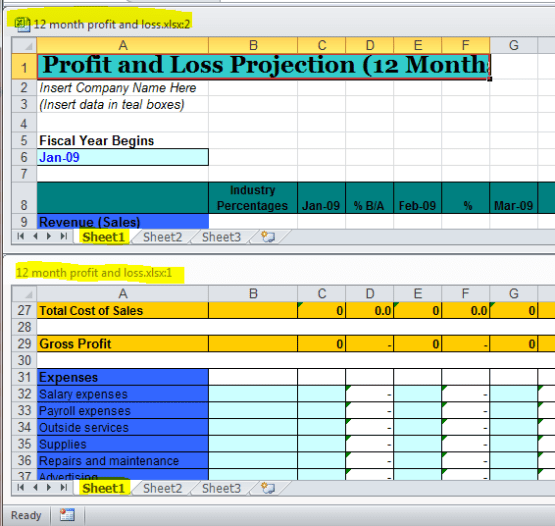

5) There you go.  The screenshot below shows two windows of the same worksheet of the same workbook.  You may select different worksheet if required.

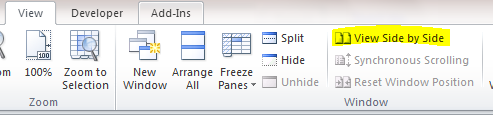

Tips:  You may click the “View Side by Side” to activate “Synchronous Scrolling
